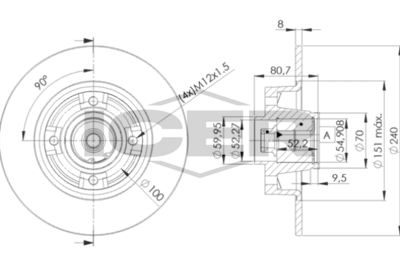

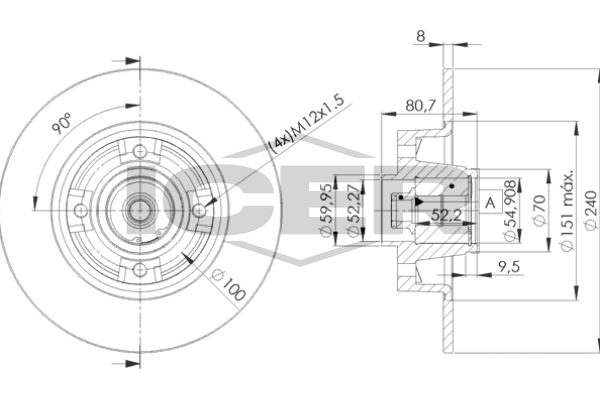

Brake Disc (Braking System)
Article Info
|
Brand
|
ICER
|
|
Article Number
|
78BD7823-1
|
|
Product Group
|
Braking System
|
|
Quantity per packing unit
|
1
|
Article Criteria
|
Brake Disc Thickness [mm]
|
7
mm
|
|
Outer Diameter [mm]
|
240
mm
|
|
Brake Disc Type
|
solid
|
|
Height [mm]
|
80.5
mm
|
|
Centering Diameter [mm]
|
55
mm
|
|
Bolt Hole Circle Ø [mm]
|
100
mm
|
|
Axle Version
|
Rear
|
|
Technical Information Number
|
78BD7823-1
|
|
Supplementary Article/Supplementary Info 2
|
with integrated magnetic sensor ring
|
|
Test Mark
|
E1 90R-02C0527/1693
|
|
Test Mark
|
E1 90R-02C0559/0109
|
|
Diameter [mm]
|
55
mm
|
|
Thickness [mm]
|
8
mm
|
|
Minimum thickness [mm]
|
7
mm
|
|
Hole Arrangement/Number
|
4
|
|
Weight [kg]
|
5,284
kg
|
OEM References
Vehicle Linkage
